Solar Panel

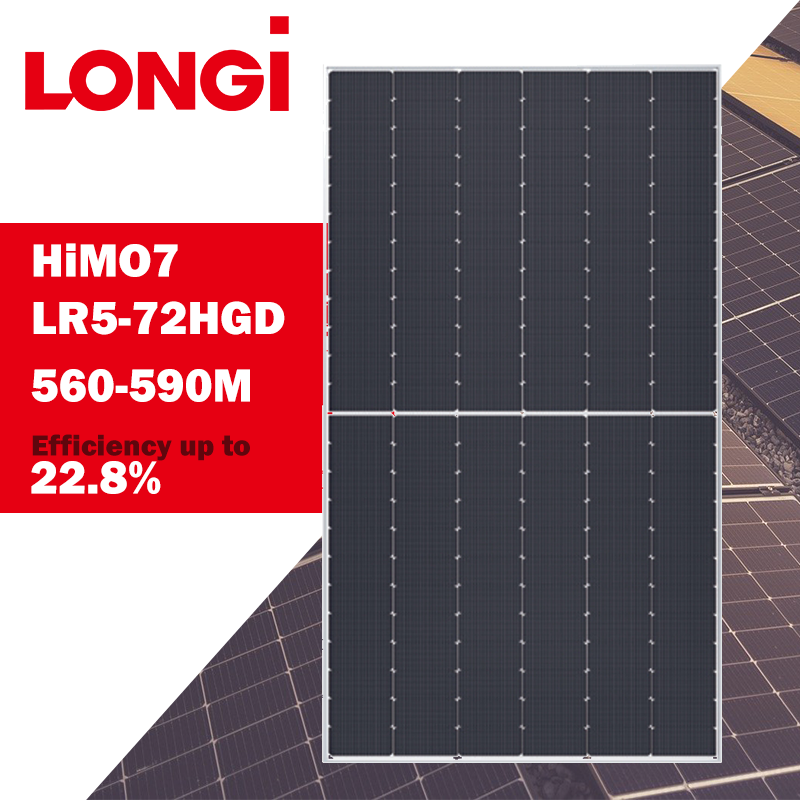

Longi Solar Panel LR5-72HGD 560-590M
Longi Solar Panel LR5-72HGD 560-590M
Model NO:LR5-72HGD 560~590M
Weight:31.8 kg
Transport Package:Wooden Pallet and Carton Packing
Specification:2278*1134*30mm
Trademark:Longi solar
Origin:China
MECHANICAL DATA
Cell Orientation144(6*24)
Junction BoxIP68,three diodes
Output Cable4mm²,+400,-200mm/±1400mm
length can be customized
GlassDual glass, 2.0+2.0mm heat strengthened glass
FrameAnodized aluminum alloy frame
Weight31.8kg
Dimension2278*1134*30mm
ELECTRICAL DATE(STC)
Nominal Max. Power (Pmax)560w565w570w575w580w585w590w
Power Tolerance0~±3%
Opt. Operating Voltage (Vmp)50.9951.0951.1951.351.4151.5251.63
Opt. Operating Current (Imp)13.8913.9714.0514.1414.2214.314.38
Open Circuit Voltage (Voc)42.8242.914343.1143.2243.3343.44
Short Circuit Current (Isc)13.0813.1713.2613.3413.4213.5113.59
Module Efficiency21.70%21.90%22.10%22.30%22.50%22.60%22.80%


Why us?

Extensive Experience: With almost 10 years of experience in the solar field, we have honed our expertise in handling all kinds of solar requirements. Whether it's for residential or commercial purposes, we have got you covered!

Stellar Customer Reviews: Our commitment to customer satisfaction has earned us rave reviews from clients all over the globe. We take pride in delivering top-notch products and services that exceed expectations.

High-Quality Products: At JA TECH CO LTD, we understand the importance of quality when it comes to solar solutions. That's why we offer a wide range of premium-grade solar panels, inverters, and batteries that are built to last.

Impeccable After-Sales Service: Our dedication to customer care doesn't end with the sale. We provide comprehensive after-sales support to ensure that your solar system continues to perform optimally. Our team of experts is always ready to assist you with any queries or concerns.

Personalized Consultation: We believe that every customer is unique, and their solar needs should be addressed accordingly. That's why we offer personalized consultation services to help you choose the best solar solution tailored to your requirements.

Lightning-Fast Delivery: We understand the urgency of your solar projects. With our efficient logistics network, we ensure prompt and reliable delivery of your solar components, saving you time and hassle.


Why Longi LR5-72HGD?

Introducing the LONGI HIMO7 LR5-72HGD, a high-performance photovoltaic module designed for centralized solar power plants!

With its advanced HPDC battery technology, this module is engineered to enhance efficiency and power output. By adopting the half-cell technology, it achieves a lower temperature coefficient, ensuring optimal performance even in challenging conditions.

Boasting a maximum conversion efficiency of 22.8%, the LONGI HIMO7 LR5-72HGD sets a new benchmark for solar modules. Its power tolerance ranges from 0% to 3%, guaranteeing consistent and reliable power generation.
